Trainer range simulators
The Trainer range driving simulator is a HGV driving simulator. This hybrid simulator can be used for all types of transport (goods and passenger) and all types of training (driving licence and vocational training).
Trainer range simulators
The Trainer range driving simulator is a HGV driving simulator. This hybrid simulator can be used for all types of transport (goods and passenger) and all types of training (driving licence and vocational training).
Discover our hybrid HGV driving simulator, perfect for all your training needs.
- Features

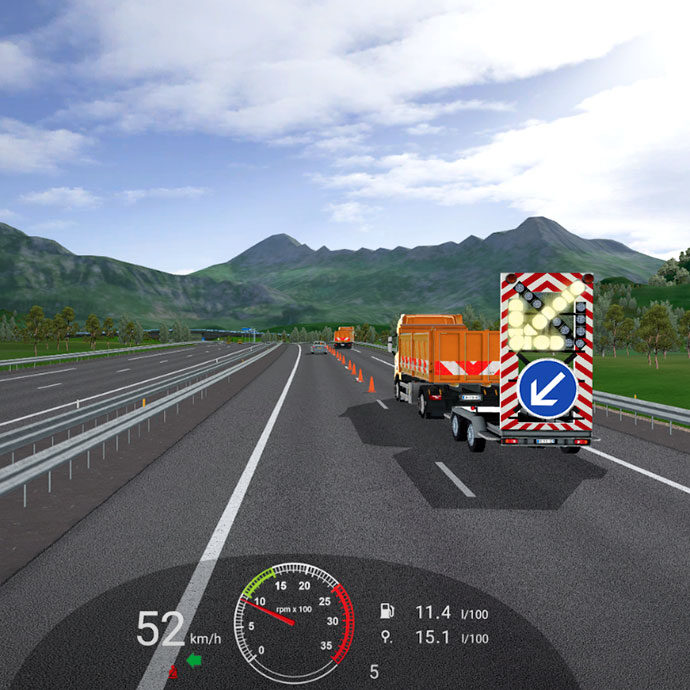

- Visual and audio environment
- Dimensions and weight
- Original Renault 47 cm steering wheel with 2.5 turns and mechanical stop
- Adjustable steering wheel (tilt)
- 1 pneumatically-pressurised seat, adjustable for height, depth and backrest angle
- 3 pedals (clutch, brake, accelerator)

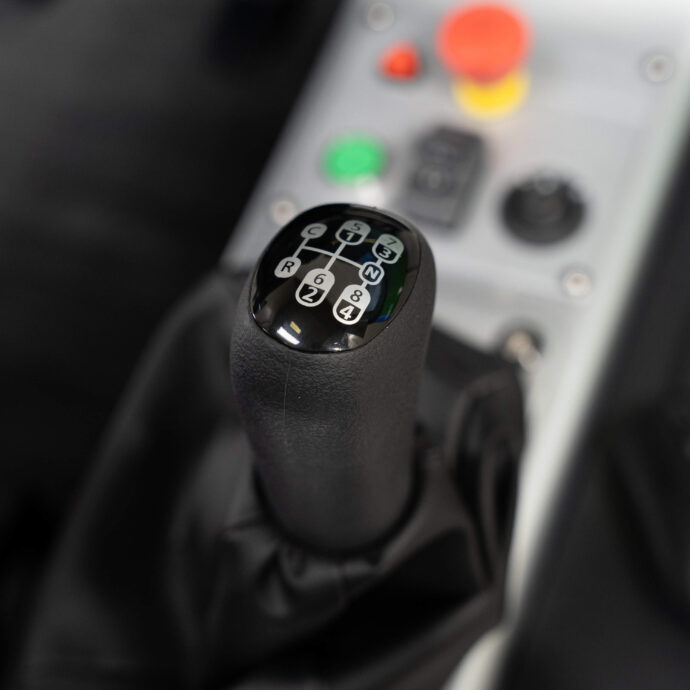

- 8-speed stepped gearbox + reverse gear (6-speed in-line gearbox function for coach driving)
- Automatic gearbox (software)
- Exhaust-mounted retarder
- Electromagnetic retarder (Telma)
- Red coupling head for tractor with pressurised hose
- Yellow coupling head for trailer with pressurised hose
- Trailer socket
- Compressor (used to manage the parking brake, seat and palm coupling)
- Parking brake
- Seatbelt with sensor (software)
- Hazard warning lights button
- Combination switch unit for windscreen wipers
- Combination switch unit for indicators, horn, parking lights, low beam and high beam lights
- Decorative tachograph plate (dummy)
- Rear-view mirror adjustment knob
- 3-point ignition key
- Door open button (for BUS and COACH functions)
- Dynamic platform (DBOX cylinders)
- Removable bonnet and step for easy access through 80 cm doors
- Keyboard holder / tablet holder
- 3 x 55-inch TV screens (ultra HD 4K)
- 3 screen holder feet on self-locking castors (height adjustable)
- Virtual dashboard (on screen)
- Virtual rear-view mirrors (on-screen)
- Audio system with jack
- Headphones
- Soundscape (engine noise, starter, road noise, tyre noise, parking brake, indicators, engine speed, etc.)

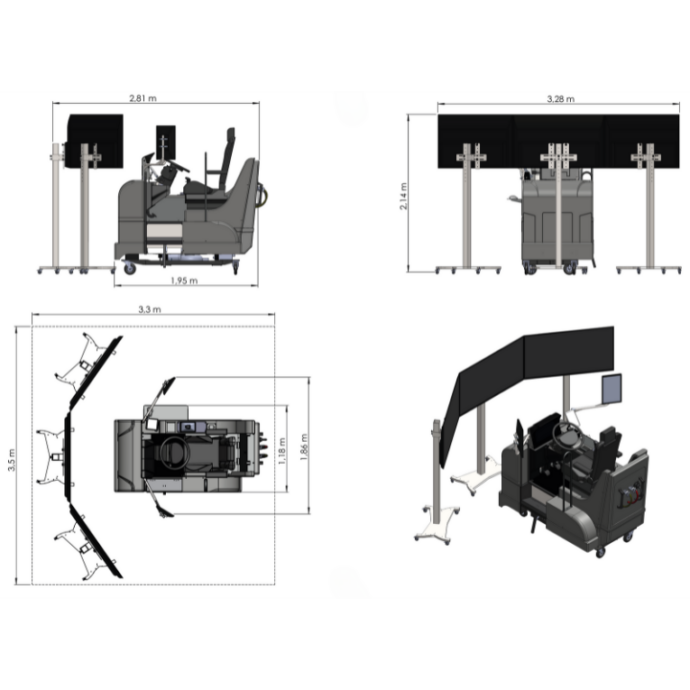

- Length : 300 cm
- Width : 105 cm
- Height : 195 cm
- Screen width : 300 cm
- Weight of driving station : 460 Kg
- Weight of display (posts + screens) : 165 Kg
- Total weight: 625 Kg
The simulator only requires 12 m² of useful floor space to be deployed and 20 minutes to be installed. It fits through 80 cm (standard) doors.
Options

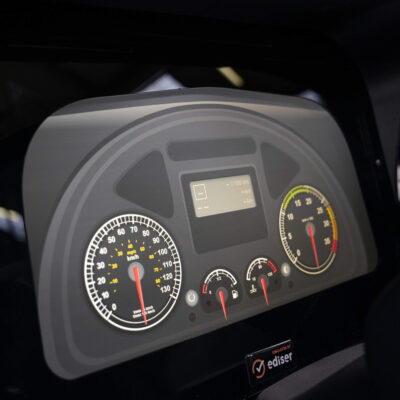

Physical speedo
Opt for a physical speedo integrated into the driving simulator instead of the digital speedo. The physical speedo is fitted with a tablet.

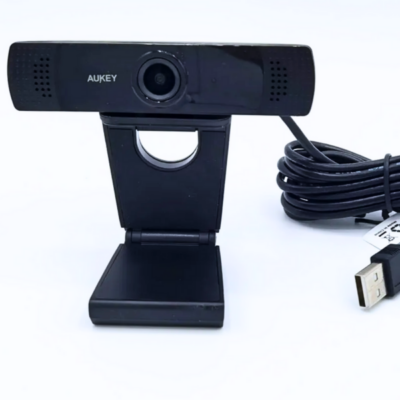

Eye-tracking
Choose the eye-tracking option to measure eye position and analyse head movement. Two physical rear-view mirrors are equipped with cameras.
Instructor station
Request a station dedicated to your instructors, tailor-made to suit your training needs. It can be adapted to one or more simulators.
Your driving simulator in your colours
Your own 100% customised driving simulator. Our Montpellier workshop has a paint booth where you can add a colour to your simulator, or customise it entirely. Benefit from the expertise of our bodywork painter!
How profitable is your simulator ?
What if, faced with the various problems you may encounter, the driving simulator was your solution? In just a few clicks, carry out a personalised study based on your criteria and data.
